煤炭采掘工具用硬质合金
Cemented carbide for coal-mining tools |
|
|

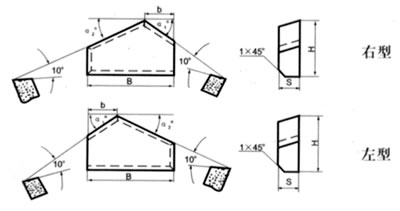

·HM14型(Type)
Type |
Dimension(mm) |
| Right |
Left |
B |
H |
S |
b |
|
|
HM1427R |
DM1427L |
27.5 |
22.0 |
4.5 |
10.0 |
30
35 |
35
30 |
HM1445R |
DM1445L |
45.0 |
21.0 |
9.0 |
15.0 |
31
17 |
17
31 |
|
|
·HM20型(Type)
Type |
Dimension(mm) |
D |
H |
r |
|
e |
HM2009 |
9.0 |
16.0 |
1.0 |
90 |
1.0 |
HM2012A |
12.0 |
18.0 |
1.5 |
82 |
1.0 |
HM2012B |
12.0 |
20.0 |
1.5 |
82 |
1.5 |
| HM2018 |
18.0 |
32.0 |
1.5 |
82 |
2.0 |
|
|
·HM21型(Type)
Type |
Dimension(mm) |
D |
H |
R |
|
|
e |
|
HM2110A |
10.0 |
18.0 |
8.0 |
53 |
53 |
1.0 |
30 |
HM2110B |
10.0 |
20.0 |
5.5 |
50 |
58 |
1.0 |
45 |
HM2112A |
12.0 |
20.0 |
6.5 |
32 |
40 |
1.0 |
45 |
HM2112B |
12.5 |
25.0 |
10.0 |
46 |
46 |
1.0 |
30 |
HM2115 |
15.0 |
22.0 |
11.0 |
45 |
45 |
2.5 |
30 |
HM2118 |
18.0 |
20.0 |
14.4 |
37 |
37 |
1.5 |
45 |
|
|
·HM22型(Type)
Type |
Dimension(mm) |
| D |
H |
R |
|
|
B |
e |
|
HM2210A |
10.0 |
18.0 |
8.0 |
48 |
33 |
- |
1.0 |
45 |
HM2210B |
10.0 |
20.0 |
8.0 |
48 |
33 |
- |
1.0 |
45 |
HM2212A |
12.0 |
22.0 |
9.0 |
50 |
50 |
4.0 |
1.0 |
30 |
HM2212B |
12.5 |
25.0 |
9.0 |
45 |
55 |
4.0 |
1.0 |
30 |
HM2214 |
14.0 |
22.0 |
10.0 |
55 |
49 |
- |
2.0 |
45 |
HM2216 |
16.0 |
28.0 |
8.0 |
50 |
50 |
5.0 |
2.0 |
30 |
HM2218 |
18.0 |
21.5 |
11.0 |
52 |
52 |
- |
2.0 |
30 |
|
|
·HM23型(Type)
Type |
Dimension(mm) |
| D |
H |
|
|
HM2312A |
12.0 |
22.0 |
56 |
48 |
HM2312B |
12.5 |
25.0 |
56 |
48 |
HM214A |
14.0 |
22.0 |
56 |
48 |
HM2314B |
14.0 |
25.0 |
56 |
48 |
|
|
·HM24型(Type)
Type |
Dimension(mm) |
| D |
H |
|
R |
r |
HM2417A |
17.0 |
26.5 |
12.0 |
26.0 |
1.75 |
HM2417B |
17.0 |
29.5 |
15.0 |
26.0 |
1.75 |
|
| |
|
