钢体圆锯片用硬质合金锯齿片系列
Series of carbide cutter blades for steel-alloy
round saw tips |
|
|

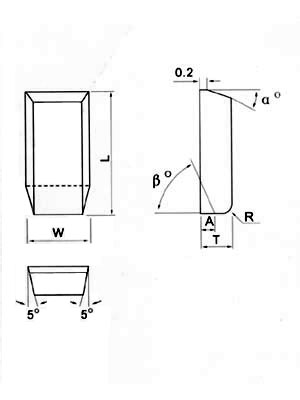

·HA系列(Type)
Type |
Dimension(mm) |
L |
W |
T |
A |
α° |
β° |
R |
HA5015-1.3
↓
-3.5
|
5.0 |
1.3
↓
3.5 |
1.5 |
0.4 |
15 |
70 |
0.4 |
HA5015-1.3
↓
■■■-3.5 |
5.0 |
1.3
↓
3.5 |
1.6 |
0.5 |
15 |
70 |
0.4 |
HA5015-1.3
↓
-3.5 |
5.0 |
1.3
↓
3.5 |
1.7 |
0.5 |
15 |
70 |
0.4 |
HA5015-1.3
↓
-3.5 |
5.5 |
1.3
↓
3.5 |
1.6 |
0.5 |
15 |
70 |
0.4 |
HA5015-1.3
↓
-3.5 |
5.5 |
1.3
↓
3.5 |
1.7 |
0.5 |
15 |
70 |
0.4 |
HA5015-1.3
↓
-3.5 |
5.5 |
1.3
↓
3.5 |
1.8 |
0.6 |
15 |
70 |
0.5 |
HA5015-1.5
↓
-4.0 |
6.0 |
1.3
↓
4.0 |
1.8 |
0.6 |
15 |
70 |
0.5 |
HA5015-1.5
↓
-4.0 |
6.0 |
1.5
↓
4.0 |
2.0 |
0.7 |
20 |
70 |
0.5 |
HA5015-1.5
↓
-4.0 |
6.5 |
1.5
↓
4.0 |
1.8 |
0.6 |
20 |
70 |
0.5 |
HA5015-1.5
↓
-4.0 |
6.5 |
1.5
↓
4.0 |
2.0 |
0.7 |
20 |
70 |
0.5 |
HA5015-1.5
↓
-4.0 |
6.5 |
1.5
↓
4.0 |
2.3 |
0.9 |
25 |
70 |
0.5 |
|
|
·HB系列(Type)
Type |
Dimension(mm) |
L |
W |
T |
A |
α° |
HB6018-2.0
↓
3.0 |
6.0 |
2.0
↓
3.0 |
1.8 |
0.65 |
100 |
HB6518-2.0
↓
3.0 |
6.5 |
2.0
↓
3.0 |
1.8 |
0.65 |
100 |
HB6320-2.0
↓
3.0 |
6.3 |
2.0
↓
3.0 |
2.0 |
1.00 |
110 |
HB6520-2.0
↓
3.0 |
6.5 |
2.0
↓
3.0 |
2.0 |
0.95 |
110 |
HB6523-2.0
↓
3.0 |
6.5 |
2.0
↓
3.0 |
2.3 |
1.15 |
70 |
HB7221-2.0
↓
3.0 |
7.2 |
2.0
↓
3.0 |
2.1 |
1.00 |
70 |
|
|
·HC系列(Type)
Type |
Dimension(mm) |
L |
W |
T |
A |
α° |
β° |
R |
HC7521-1.5
↓
-4.0 |
7.5 |
1.5
↓
4.0 |
2.0 |
0.7 |
20 |
70 |
0.5 |
HC7523-1.5
↓
-4.0 |
7.5 |
1.5
↓
4.0 |
2.3 |
0.9 |
25 |
70 |
0.5 |
HC7525-1.5
↓
-4.0 |
7.5 |
1.5
↓
4.0 |
2.5 |
1.1 |
30 |
70 |
0.5 |
HC8020-1.8
↓
-4.5 |
8.0 |
1.8
↓
4.5 |
2.0 |
0.7 |
20 |
70 |
0.5 |
HC8023-1.8
↓
-4.5 |
8.0 |
1.8
↓
4.5 |
2.3 |
0.9 |
25 |
70 |
0.5 |
HC8025-1.8
↓
-4.5 |
8.0 |
1.8
↓
4.5 |
2.5 |
1.1 |
30 |
70 |
0.5 |
HC85030-1.8
↓
-5.0 |
8.0 |
1.8
↓
5.0 |
3.0 |
1.5 |
30 |
60 |
0.5 |
HC8523-1.8
↓
-5.0 |
8.5 |
1.8
↓
5.0 |
2.3 |
0.9 |
25 |
70 |
0.5 |
HC8525-1.8
↓
-5.0
|
8.5 |
1.8
↓
5.0 |
2.5 |
1.1 |
30 |
70 |
0.5 |
HC8528-1.8
↓
-5.0 |
8.5 |
1.8
↓
5.0 |
2.8 |
1.1 |
30 |
70 |
0.5 |
HC9025-2.0
↓
-6.0 |
9.0 |
2.0
↓
6.0 |
2.5 |
1.1 |
30 |
70 |
0.5 |
|
 |
·HD系列(Type)
Type |
Dimension(mm) |
L |
W |
T |
HC7125
↓
7312 |
0.312 |
0.125
↓
0.312 |
0.093 |
HC7150
↓
7375 |
0.375 |
0.150
↓
0.375 |
0.093 |
HC7140
↓
7687 |
0.500 |
0.140
↓
0.687 |
0.125 |
HC7150
↓
7312 |
0.375 |
0.150
↓
0.312 |
0.125 |
HC7110
↓
7300 |
0.344 |
0.110
↓
0.300 |
0.125 |
|
| |
|
