矿山，油田钻头用硬质合金齿
Hard metal(carbide)inserts for,mining and oil-field
rock bits |
|
|
·HX型(Type)
Type |
Dimension(mm) |
D |
H |
h |
R |
R1 |
α |
β |
γ |
e |
HX0810 |
8.0 |
10.0 |
6.5 |
1.8 |
2.0 |
90° |
18° |
22°30` |
1.2 |
HX1011 |
10.0 |
11.0 |
7.0 |
2.0 |
2.5 |
90° |
18° |
22°30` |
1.4 |
HX1013 |
10.0 |
13.0 |
8.0 |
3.0 |
2.5 |
70° |
18° |
22°30` |
1.5 |
HX1115 |
11.0 |
15.0 |
8.0 |
2.8 |
2.5 |
65° |
18° |
20° |
1.5 |
HX1217 |
12.0 |
17.0 |
10.5 |
3.5 |
3.0 |
70° |
18° |
22°30` |
1.6 |
HX1418 |
14.0 |
18.0 |
12.0 |
3.0 |
3.5 |
90° |
18° |
22°30` |
1.8 |
HX1419 |
14.0 |
19.0 |
11.0 |
4.5 |
4.5 |
60° |
18° |
20° |
1.5 |
HX1421 |
14.0 |
21.0 |
11.0 |
2.5 |
2.5 |
60° |
18° |
18° |
1.8 |
HX1520 |
15.0 |
20.0 |
12.0 |
3.0 |
3.0 |
80° |
18° |
22°30` |
1.8 |
HX1721 |
17.0 |
21.0 |
13.0 |
4.0 |
3.5 |
80° |
18° |
22°30` |
2.2 |
HX1929 |
19.0 |
29.0 |
17.0 |
4.0 |
3.0 |
60° |
18° |
15° |
2.2 |
HX2235 |
22.0 |
35.0 |
19.0 |
3.5 |
2.5 |
60° |
18° |
13° |
2.2 |
HX2537 |
25.0 |
37.0 |
20.0 |
3.0 |
1.5 |
62°30` |
18° |
20° |
2.2 |
HX2539 |
25.0 |
39.0 |
20.0 |
3.0 |
1.5 |
60° |
18° |
20° |
2.2 |
|
 |
·HB型(Type)
Type |
Dimension(mm) |
D |
H |
R |
R1 |
h |
e |
|
|
|
a |
e |
HB1217 |
12.0 |
17.0 |
2.0 |
2.5 |
11.0 |
1.5 |
70 |
18 |
18 |
3.0 |
1.2 |
HB1418 |
14.0 |
18.0 |
2.5 |
3.0 |
12.0 |
1.5 |
80 |
20 |
15 |
4.0 |
1.5 |
HB1419 |
14.0 |
19.0 |
2.0 |
3.0 |
12.0 |
1.5 |
75 |
20 |
15 |
5.0 |
1.5 |
HB1621 |
16.0 |
21.0 |
2.5 |
3.0 |
13.5 |
2.0 |
70 |
20 |
18 |
4.0 |
1.8 |
HB1924 |
19.0 |
24.0 |
3.5 |
3.0 |
15.0 |
2.0 |
70 |
20 |
18 |
4.5 |
1.8 |
HB2230 |
22.0 |
30.0 |
3.5 |
3.0 |
17.0 |
2.0 |
60 |
18 |
18 |
4.5 |
2.2 |
|
 |

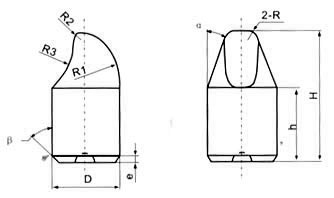

·HS型(Type)
Type |
Dimension(mm) |
D |
H |
R |
|
|
|
h |
|
|
e |
HS1421 |
14.0 |
21.0 |
2.5 |
20.0 |
2.5 |
12.0 |
12.0 |
18 |
10 |
1.8 |
HS1623 |
16.0 |
23.0 |
2.5 |
23.0 |
2.5 |
15.0 |
12.0 |
15 |
10 |
1.8 |
HS1724 |
17.0 |
24.0 |
3.0 |
25.0 |
3.0 |
15.0 |
13.0 |
20 |
10 |
1.8 |
HS1930 |
19.0 |
30.0 |
3.0 |
23.0 |
3.0 |
16.0 |
17.0 |
15 |
10 |
2.2 |
HS2240 |
22.0 |
40.0 |
3.0 |
30.0 |
3.0 |
20.0 |
21.0 |
13 |
10 |
2.2 |
HS2545 |
25.0 |
45.0 |
4.0 |
35.0 |
3.5 |
30.0 |
23.0 |
13 |
10 |
1.8 |
|
|
·HP型(Type)
Type |
Dimension(mm) |
D |
H |
e |
HP0607 |
6.0 |
7.0 |
1.5 |
HP0707 |
7.0 |
7.0 |
HP0807 |
8.0 |
7.0 |
HP0908 |
9.0 |
8.0 |
HP1008 |
10.0 |
8.0 |
HP1109 |
11.0 |
9.0 |
HP1210 |
12.0 |
10.0 |
HP1412 |
14.0 |
12.0 |
|
| |
|
